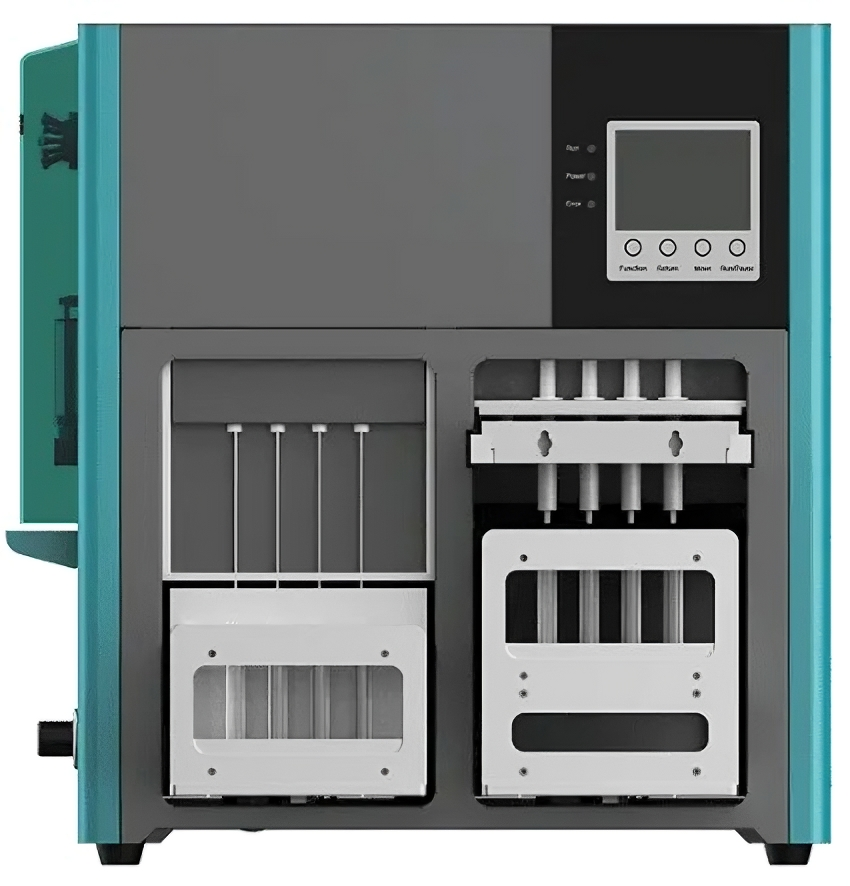

Automated Solid Phase Extraction

Automated Solid Phase Extraction Systems are automated SPE systems and purification equipments, designed to meet the requirements of large-scale sample preparation in modern testing laboratories. It moderates the workflow bottleneck of manual operation with precise flow rate control and repeat processing. Compact instrument design, good fit in a fume hood, minimize chemical exposure and contact lab technicians. Automated solid phase extraction system can be widely used in any pre-treatment of the large sample size required solid-phase extraction, such as pesticide and veterinary drug residues in food, harmful organic compounds in the environment, poisonous materials in blood and urine.

Request a quote Request a brochure Contact sales

Features

  • Fully automated solid-phase extraction, minimal operator intervention.
  • Accurate flow rate control to ensure parallelism.
  • Multiple extraction channels, consistent batch processing.
  • Efficient operation mode through sychronous rack positioning and fast solvent switch.
  • Flexible operation with various modules for different applications.
  • Graphical software interface, remote real-time monitoring.

Specifications

ParameterSpecification
ProductFotector 02HTFotector PlusFotector 08HTFS 360
Extraction channel2 channels in parallel6 channels in parallel8 channels in parallel6 channels in parallel
Sample capacity20, 1260, 3680, 4836
SPE cartridge size3mL, 6mL1mL, 3mL, 6mL, 12mL, 20mL1mL, 3mL, 6mL3mL, 6mL, 12mL
Sample vials15mL, 20mL, 60mL, 80mL15mL, 20mL, 60mL, 80mL15mL, 20mL, 60mL, 80mL15mL, 20mL, 80mL
Collection vials15mL, 20mL, 60mL, 80mL15mL, 20mL, 60mL, 80mL15mL, 20mL, 60mL, 80mL15mL, 20mL, 80mL
Solvent capacity8888
Flow rate0.1 to 100mL/min0.1 to 100mL/min0.1 to 100mL/min0.1 to 100mL/min
Gas supply and connectionNitrogen gas;
Max. input: 100psi/6.9bar;
Output: 0 to 20psi/1.4bar		Nitrogen gas;
Max. input: 100psi/6.9bar;
Output: 0 to 20psi/1.4bar		Nitrogen gas;
Max. input: 100psi/6.9bar;
Output: 0 to 20psi/1.4bar		Nitrogen gas;
Max. input: 100psi/6.9bar;
Output: 0 to 20psi/1.4bar
Fume hood/ventilationRequiredRequiredRequiredRequired
Control softwareWindows PC; WIFI connectionWindows PC; WIFI connectionWindows PC; WIFI connectionWindows PC; WIFI connection
Dimension40cm x 38cm x 58cm62cm x 38cm x 63cm77cm x 45cm x 64cm62cm x 38cm x 63cm
Weight30kg68kg72kg68kg
Power supply200 to 240V, 50/60Hz200 to 240V, 50/60Hz200 to 240V, 50/60Hz200 to 240V, 50/60Hz
Storage temperature0 to 40°C0 to 40°C0 to 40°C0 to 40°C
Storage humidity20 to 85%20 to 85%20 to 85%20 to 85%
Operating temperature10 to 40°C10 to 40°C10 to 40°C10 to 40°C
Operating humidity20 to 80%20 to 80%20 to 80%20 to 80%
