Description

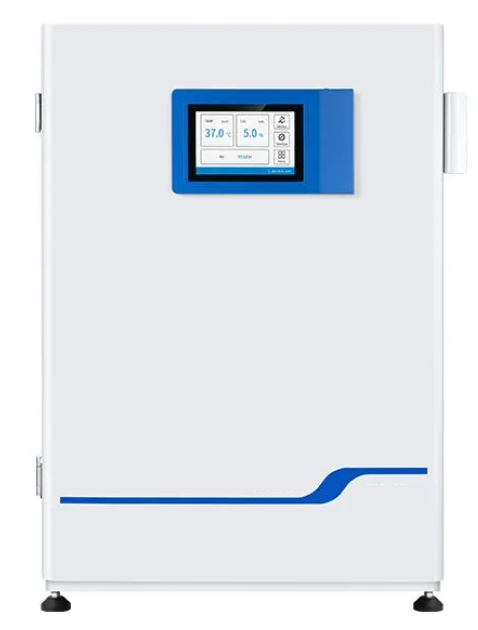

The carbon dioxide cell culture incubator is an indispensable part of cell culture, whitch involves the fields of cancer, stem cell, immunology, pharmaceutical, and neurobiology. CO180 CO2 incubator provides a more suitable growth environment for cells, ensuring three core parameters–temperature, CO2 concentration and high relative humidity (rH), controlled precisely and maintains consitently. The built-in 140℃ dry-heat sterilization program helps to prevent bacterial contamination. All the data and 7-days performance trend graphing are visible on the 7-inch touchable screen , and stored data can be – download trough USB.
Features
- Precise CO2 concentration monitor
- Stable Temperature control
- User-friendly operation
- Multiple alarm system
- Effective contamination protection system
- Visual and large-capacity data record
Technical Specifications
| Temperature | Control & Range | ±0.1℃@ 37℃，5℃above ambient to 50℃ |
| Heating Method | Air jacket(direct heat) | |
| Uniformity | ±0.3℃ @ 37℃ | |
| Alarm Setting | Customized, Upper limit: (T+0.1) ~ (T+5.0); Lower limit:（T-0.1) ~ (T-5.0） | |
| Sensor | Pt1000 Platinum thermistor | |
| Controller | PID | |
| Readability & Setability | 0.1℃ | |
| Sterilization Method | 140℃ dry heat sterilization | |
| CO2 Concentration | Control & Range | ±0.1%@5%，0-20% |
| Sensor | Heat-resistant infrared (IR) sensor | |
| Inlet Pressure | 1.0 bar (recommended) | |
| Uniformity | ±0.3% | |
| Readability & Setability | 0.10% | |
| Alarm Setting | Customized, Upper limit: (C+0.1) ~ (C+1.0); Lower limit: (C-0.1) ~ (C-5.0) | |
| Humidity | Humidity Pan Volume | ~3.8 L |
| Display | 1% RH | |
| Shelves | Dimensions | 48.7×46.1 cm |
| Surface Area | 224.5 cm2 | |
| Number (Standard & Max) | 4 ; 17 | |
| Size & Weight | Interior Volume | 188 L |
| Interior Dimensions | 51.0(W)×54.7(D)×67.5(H) cm | |
| Exterior Dimensions | 69.5(W)×67.0(D)×97.0(H) cm | |
| Net Weight | 110 kg |
