Description

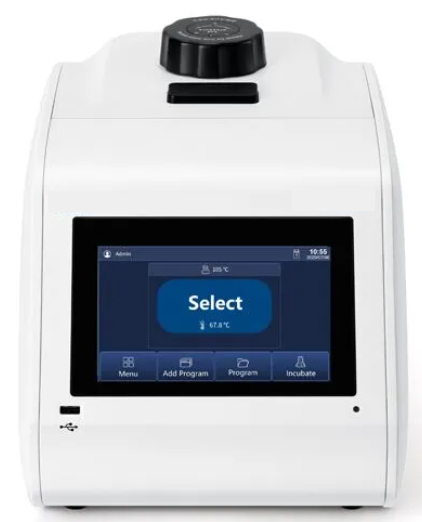

The 96-well M2-96G PCR thermal cycler provides temperature gradient function and 12 groups of gradient can be realized at one time to optimize PCR protocol. With 7 inch touch screen, personalized account could be edited to enable intuitive and quick programming.
It is widely used in molecular biology, microbiology, genetics, cell biology, food science and agronomy to carry out experimental research such as molecular cloning, gene expression analysis, genotype identification, sequencing, and pathogenic microorganism analysis
- Intelligent and efficient linear gradient function: 12 linear gradients in the same run allow to optimize the ideal annealing temperature
- Fast ramping for PCR runs:Fast ramp rate of up to 6℃/s to realize efficient PCR runs
- Multiple personalized account management: Personalized account management system provides organized programs and unwanted changes
- Simple and efficient operations: Processes can be imported and synchronized via USB ports and achieve multi-machine collaborative work.
Specifications
| Description | M2-96G |
| Sample | 96×0.2 ml/0.1ml tubes or 1×96-well plate |
| Reaction volume | 10~80 μL |
| Heating block | 96-well |
| Temperature control range of the block | 0~100℃ |
| Gradient capability | Yes |
| Gradient range | 30~100℃ |
| Lid temperature range | 40~100℃ |
| Temperature accuracy | ±0.25℃ (35~100℃) |
| Temperature Uniformity | ≤±0.3℃ (After reaching a constant temperature of 95℃ for 20s) |
| Max. heating and cooling rate | 6.0℃/s; 4.5℃/s |
| Average heating and cooling rate | 4.5℃/s; 3.5℃/s |
| Display | 7 inch LCD touch screen |
| Max. amount of storage | 2000 |
| Max. number of program cycles | 99 |
| Max. number of program steps | 64 |
| Inc/Dec temp input range | ±0.1-5℃ |
| Inc/Dec time input range | ±1-240s |
| Power-off protection | Yes |
| Interface | RS232、USB、Network port |
| Dimensions(W *D*H) | 264mm*470mm*259mm |
| Weight | 16.5kg |
| Power supply | 220V/50HZ; 110V/60HZ |
| Max. Power consumption | 925W |
