Automated Solid Phase Extraction

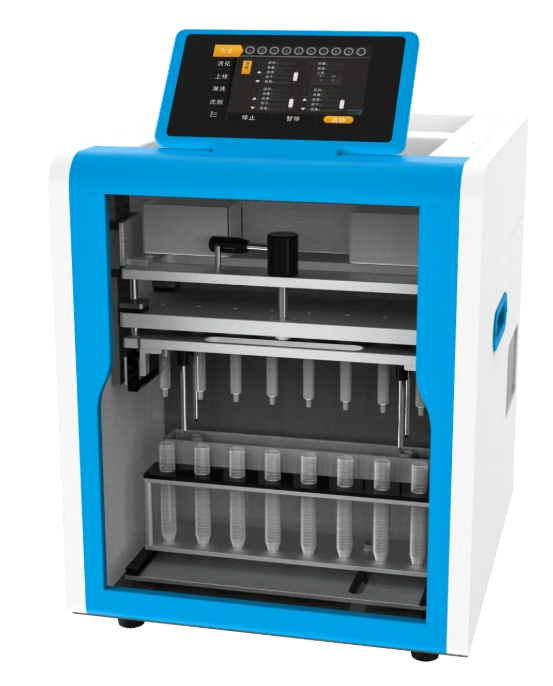

Solid Phase Extraction (SPE) systems support the entire SPE process. It uses digitally-controlled pumps to regulate the pressure for each SPE column, thereby adjusting the flow rate of liquid for each of them according to the current program. This allows for a more efficient extraction of target analytes. The system also prevents cross contamination by transferring each column to the elution rack under uniform positive pressure for rapid elution.

Request a quote Request a brochure Contact sales

Features

High-throughput

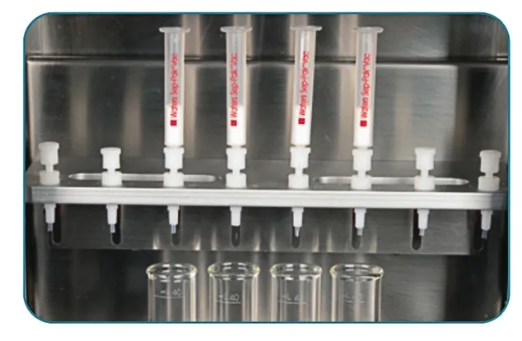

Allows simultaneous processing of up to 8 samples. The HSE- 08C series has a maximum flow rate of 60mL/min.

Intuitive User-interface

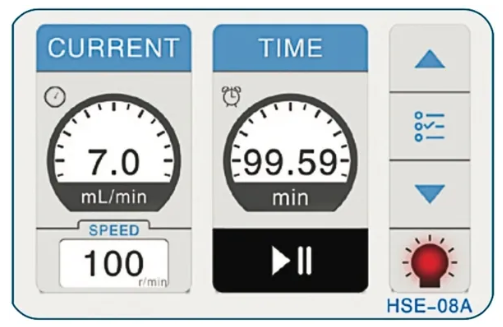

LED display (HSE-A) or full touch-screen display (HSE-C) shows live readings from the system, and allows you to fine- tune every step of the way through easy-to-use controls. The HSE-C series also has memory space for 5 settings, further increasing experimental efficiency.

Specifications

Series HSEE-08A HSEE-08C
Tracks 8
Flow rate(mL/min) 0.1~0.7 1.0~6.0
Duration range(min) 0-999
Memory Capacity - ✓ 8 presets
power 200w
Dimensions 400*370*470 450*400*470
Control and display LED digital display, control knob Full touch-screen
