- All-plastic ABS engineering plastic casing,anti-acid and alkali corrosion;
- Online monitoring of conductivity of RO pure water and resistivity of UP ultrapure water/online monitoring of water temperature;
- With quantitative water intake setting function(when the water tank is storing water);
- With historical data query function;
- The time and volume of water intake(year/month/day/hour/minute/liter)
- The water quality of the previous water intake(RO conductivity/UP resistivity)
- Previous failure records
- With a USB interface,historical water intake data can be downloaded to achieve traceability of water samples;
- Equipped with Yopu’s newly designed pure water tank as standard;
- TOC online display(optional);
- Pretreatment column/ultrapurification column monitoring and early warning function(optional).

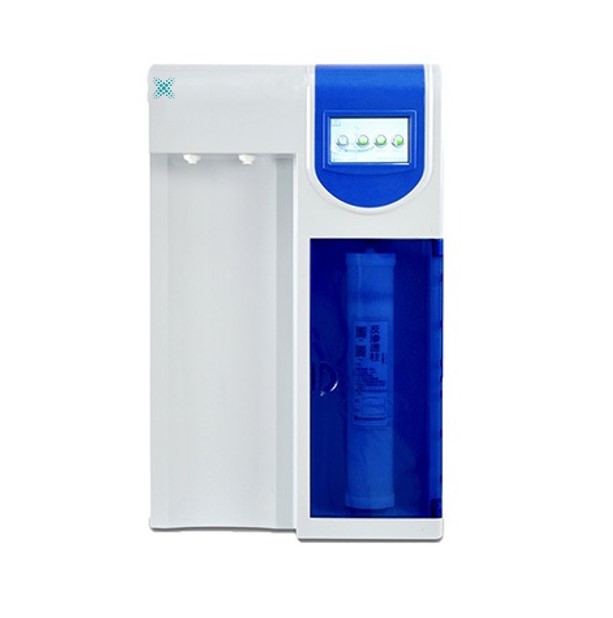

| name | UPGZH ultrapure water machine | |||
| Product number |
UPGZH-I-5/10/20TN UPGZH-I-5/10/20NP |
UPGZH-II-5/10/20TN UPGZH-II-5/10/20NP |
UPGZH-III-5/10/20TN UPGZH-III-5/10/20NP |
UPGZH-IV-5/10/20TN UPGZH-IV-5/10/20NP |
| Water intake requirements | Total dissolved solids TDS<200ppm; water pressure 0.1~0.4MPa; water temperature 5-45℃; TOC<100ppb | |||
| water production | 5/10/20 l/h | |||
| ro effluent quality | ≤Inlet water conductivity × 2% | |||
| up effluent quality |
Resistivity 18.2Ω.cm Particulate matter≤1/ml Microorganism≤1cfu/ml Heavy metal ions≤20ppb |
Resistivity 18.2Ω.cm Particulate matter≤1/ml Microorganism≤1cfu/ml Heavy metal ions≤20ppb Heat source≤0.01EU/ml |
Resistivity 18.2Ω.cm
Particulate matter≤1/ml Microorganism≤1cfu/ml Heavy metal ions≤10ppb |
Resistivity 18.2Ω.cm
Particulate matter≤1/ml Microorganism≤1cfu/ml Heavy metal ions≤10ppb Heat source≤0.01EU/ml |
| UV ultraviolet digestion instrument | — | 185/245nm | ||
| Working power | AC220V-50HZ(power 30~150W) | |||
| Host size | 375×500×620(mm) | |||
| weight | 30-35kg | |||
| Scope of application |
Atomic Absorption(AAS)
Atomic Emission(AES) Ion Chromatography(IC) Mass Spectrometry(MC) Plasma Emission Spectroscopy(ICP) Gas Liquid Chromatography(HPLC) |
Gas Liquid Chromatography(HPLC)
Electrophoresis,gel analysis animal and plant cell culture |
For HPLC,IVF,PCR
animal and plant cell culture Electrochemical Interface Research |
For HPLC,IVF,PCR,ICP-MS
animal and plant cell culture Electrochemical Interface Research genetic research test tube baby |
| Tank configuration | The TNP model comes standard with a 30L open pure water tank,and the TN model comes standard with a 15L constant pressure water tank. | |||
